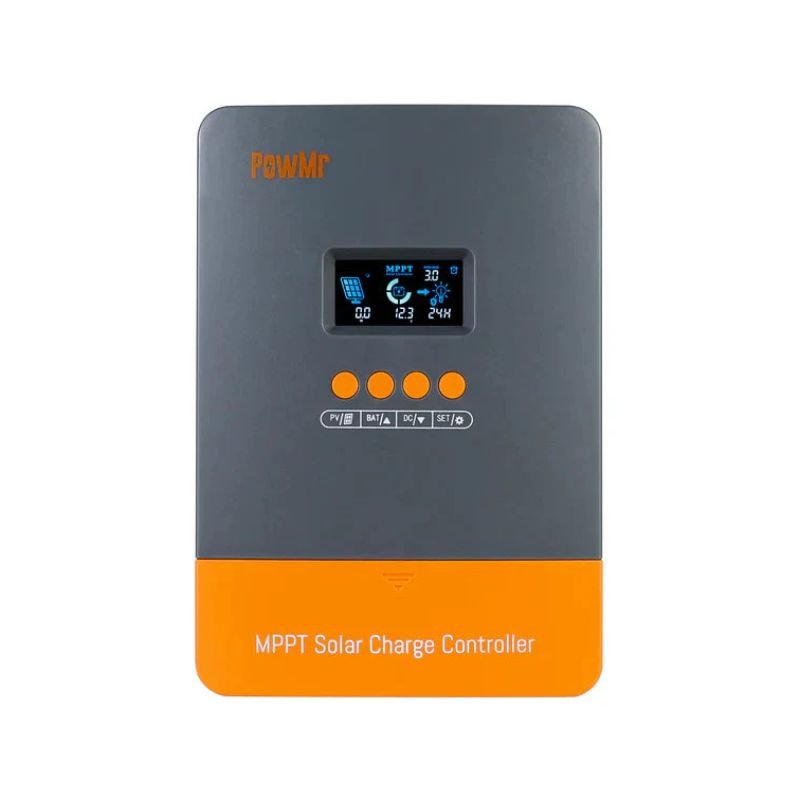

PowMr 25A MPPT Solar Charge Controller 12V/24V – LCD Display

PowMr 25A MPPT Solar Charge Controller 12V/24V – LCD Display - Image 2

PowMr 25A MPPT Solar Charge Controller 12V/24V – LCD Display

Product: 25A MPPT Solar Charge Controller 12V/24V – LCD Display
Brand: PowMr
Model: POW-M25-PRO

Charging Current Options: Available in 25A, 35A, 45A, or 60A configurations depending on the specific sub-model variant.

System Voltage Detection: 12V / 24V / 36V / 48V Auto-Recognition (The controller automatically detects and adapts to your battery bank’s voltage).

Max PV Input Voltage (VOC): Up to 100V DC for smaller models, extending up to 160V DC – 190V DC for higher-amperage versions.

Tracking Efficiency: ≥ 99.5% with a maximum peak conversion efficiency of up to 98%

Category Solar Charge Controller

Original price was: ৳ 4,800.00.Current price is: ৳ 4,500.00.

Description
Reviews (0)

Description

Electrical Specifications

Charging Current Options: Available in 25A, 35A, 45A, or 60A configurations depending on the specific sub-model variant.

System Voltage Detection: 12V / 24V / 36V / 48V Auto-Recognition (The controller automatically detects and adapts to your battery bank’s voltage).

Max PV Input Voltage (VOC): Up to 100V DC for smaller models, extending up to 160V DC – 190V DC for higher-amperage versions.

Tracking Efficiency: ≥ 99.5% with a maximum peak conversion efficiency of up to 98%.

Maximum Solar PV Input Power

The maximum solar wattage supported scales according to your connected system voltage:

12V System: Up to 720W max PV input

24V System: Up to 1,440W max PV input

36V System: Up to 2,100W max PV input

48V System: Up to 2,800W max PV input

Charging & Battery Compatibility

Charging Algorithm: 3-Stage smart charging (Constant Current / MPPT → Constant Voltage / Absorption → Float Charge).

Supported Battery Types: Broad compatibility with deep-cycle chemistry options including LiFePO4, Lithium-ion, Sealed Lead-Acid (AGM), Gel, Flooded, and User-Defined (Custom) presets.

Integrated System Protections

PV short-circuit and overcurrent protection

PV and Battery reverse polarity protection

Battery overvoltage and over-discharge protection

High-temperature auto-derating/over-temperature protection
